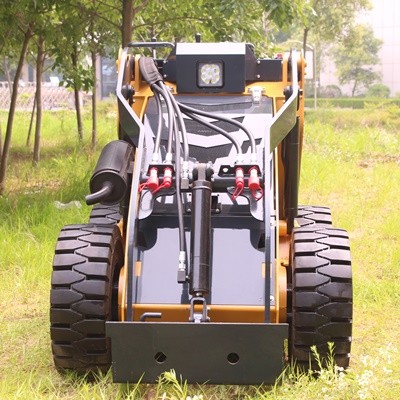

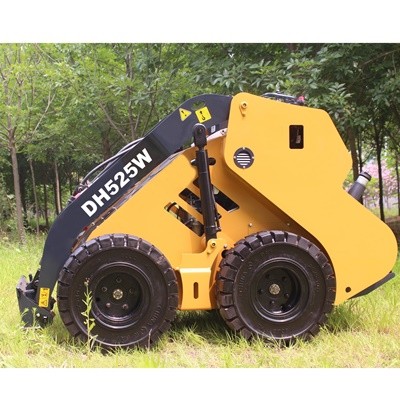

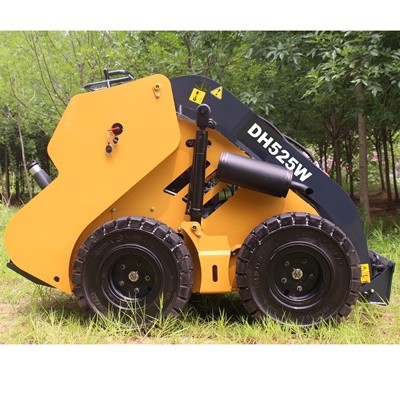

25hp Mini Skid Steer Loader DH525W

Engine

DRIVE System

Model

Kubota // D1105

Main Drive:

Left Hydraulic Motors(2 units) drive left side tires;

Right Hydraulic Motors(2 units) drive right side tires;

Fuel/Cooling .

Diesel/Liquid

No.Engine cylinder

3

Bore and stroke

78mm/78.4 mm

Tires

23×8.5-12(Pneumatic)

Displacement

1. 123L

Transmission :

Direct drive of hydraulic motor to main undercarriage drive sprocket

Power output

18.5kw/3000rpm

Fuel Consumption

6. 1L/h

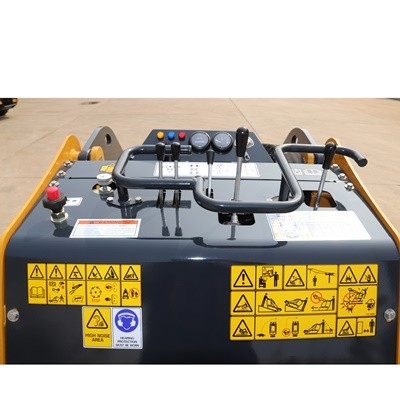

Controls

Refilling Capacity & lubrication

Vehicle Steering

Direction& Speed controlled by handle

Cooling System

5.2L

Auxiliary Pressure Release

Hand lever moved F/R after engine off

Fuel Tank

35L

Engine

Hand lever throttle ;Electric Starting

Engine Oil with Filter

5. 1L

Starting Aid

Glow Plugs – Activated by key switch

Hydraulic System

40L

Bucket

Bucket capacity

0.3m3

Bucket width

1250 mm

Performance

Tipping Capacity

280kg

Machine Weight

1095kg

Travel Speed

10.8 km/h

Overall Dimensions

Height .

1358mm

Wheel Base

775mm

Length without Attachment

1965mm

Turning Radius with Standard Bucket

1624mm

Length with Standard Bucket

2600mm

Width

1070mm

Operating Height .

2619mm

Width with Bucket

1250mm

Rollback @carry Position

20°

Rollback Fully Raised @ Maximum Height.

93°
