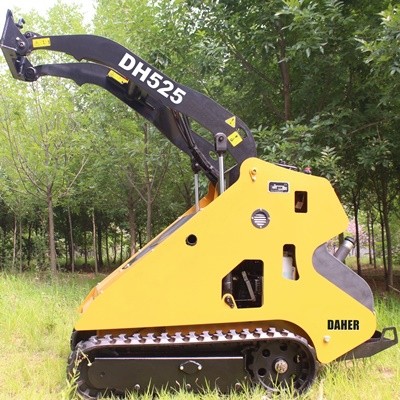

25HP Mini Skid Steer Loader DH525 Specifications :
Engine |
Travel System |
||||
Model |
Kubota // D1105 |
Main Drive |
Fully hydraulic |
||
Fuel/Cooling . |
Diesel/Liquid |
Tracks |
200mm width |
||
No.Engine cylinder |
3 |
Rollers |
5 Each side |
||
Bore and stroke |
78mm/78.4 mm |
Pressure |
25.4Kpa |
||
Displacement |
1. 123L |
Transmission : Direct drive of hydraulic motor to main undercarriage drive sprocket |
|||
Power output |
18.5kw/3000rpm |
||||
Fuel Consumption |
6. 1L/h |
||||
Controls |
Refilling Capacity & lubrication |
||||
Vehicle Steering |
Direction& Speed controlled by handles |
Cooling System |
5.2L |
||
Auxiliary Pressure Release |
Hand lever moved F/R after engine off |
Fuel Tank |
34L |
||
Engine |
Hand lever throttle ;Electric Starting |
Engine Oil with Filter |
5. 1L |
||
Starting Aid |
Glow Plugs – Activated by key switch |
Hydraulic System |
40L |
Bucket |
|
Bucket capacity |
0.3m3 |
Bucket width |
1250 mm |
Performance |
||||
Operating Capacity(35%) |
291 kg |
|||
Operating Capacity (50%) |
416kg |
|||
Tipping Capacity |
832kg |
|||
Weight(no attachment) |
1060 kg |
|||
Travel Speed |
5.6 km/h |
|||
Overall Dimensions |
||||
Height . |
1284mm |
Ground Contact Length |
918mm |
|
Length without Attachment |
1959mm |
Turning Radius with Standard Bucket |
1572mm |
|
Length with Standard Bucket |
2619mm |
Width |
1100mm |
|
Operating Height . |
2626mm |
Wheel Tread (over tracks) |
903mm |
|
Rollback @carry Position |
21° |
Width with 36" Bucket . |
1250mm |
|
Rollback Fully Raised @ Maximum Height. |
94° |
|
Working ranges |
|
Angle of Departure |
20° |
Carry Position |
176mm |
Dump Angle @ Maximum Height |
37° |
Dump Height with Standard Bucket |
1287mm |
Dump Reach @ Maximum Height |
833mm |
Ground Clearance |
141mm |
Ground Clearance-under platform |
171mm |
Height to Bucket Hinge Pin |
1869mm |
