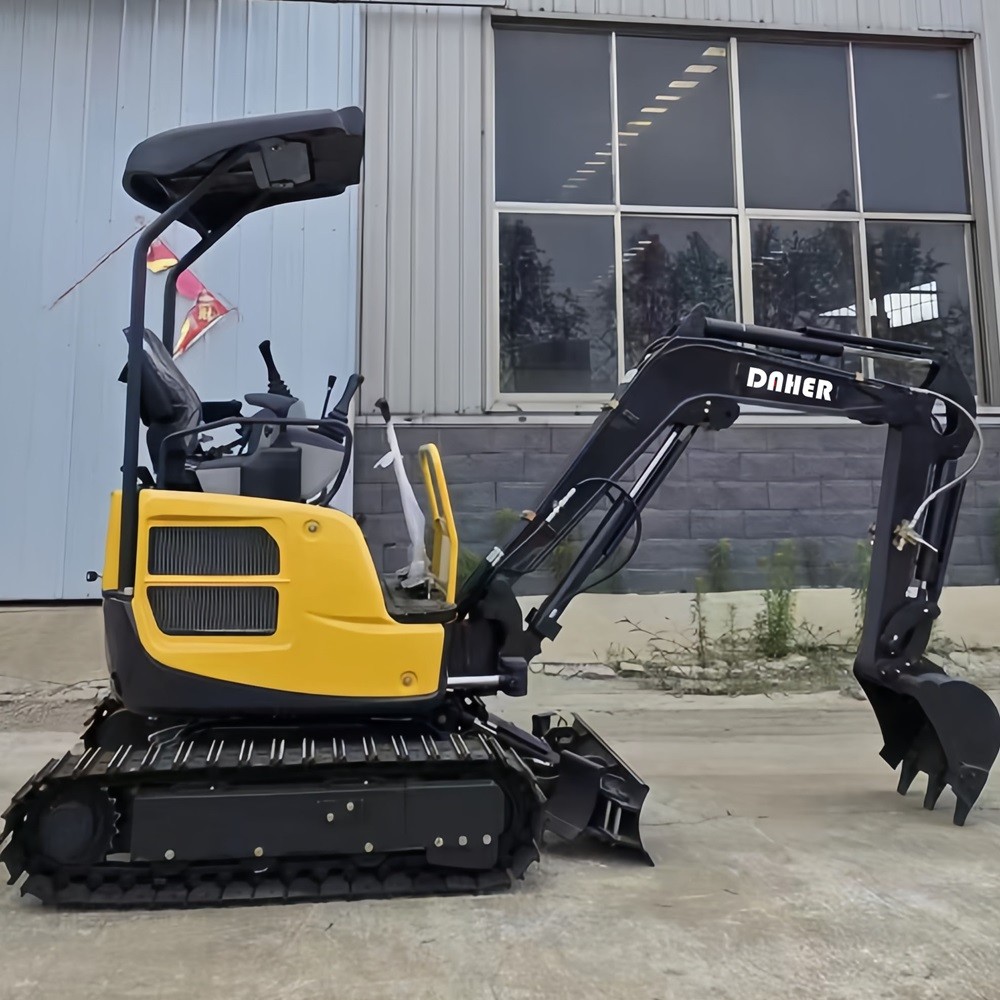

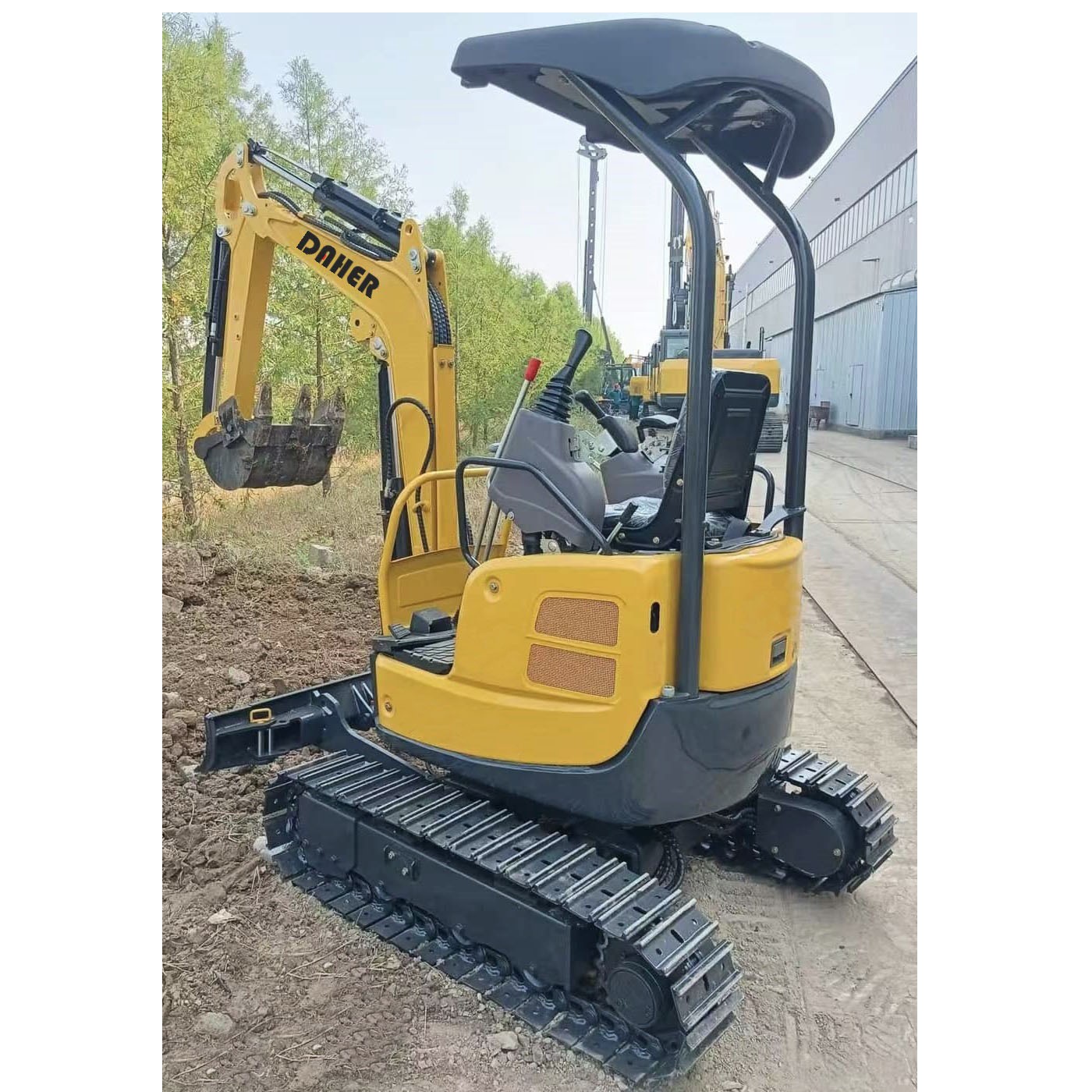

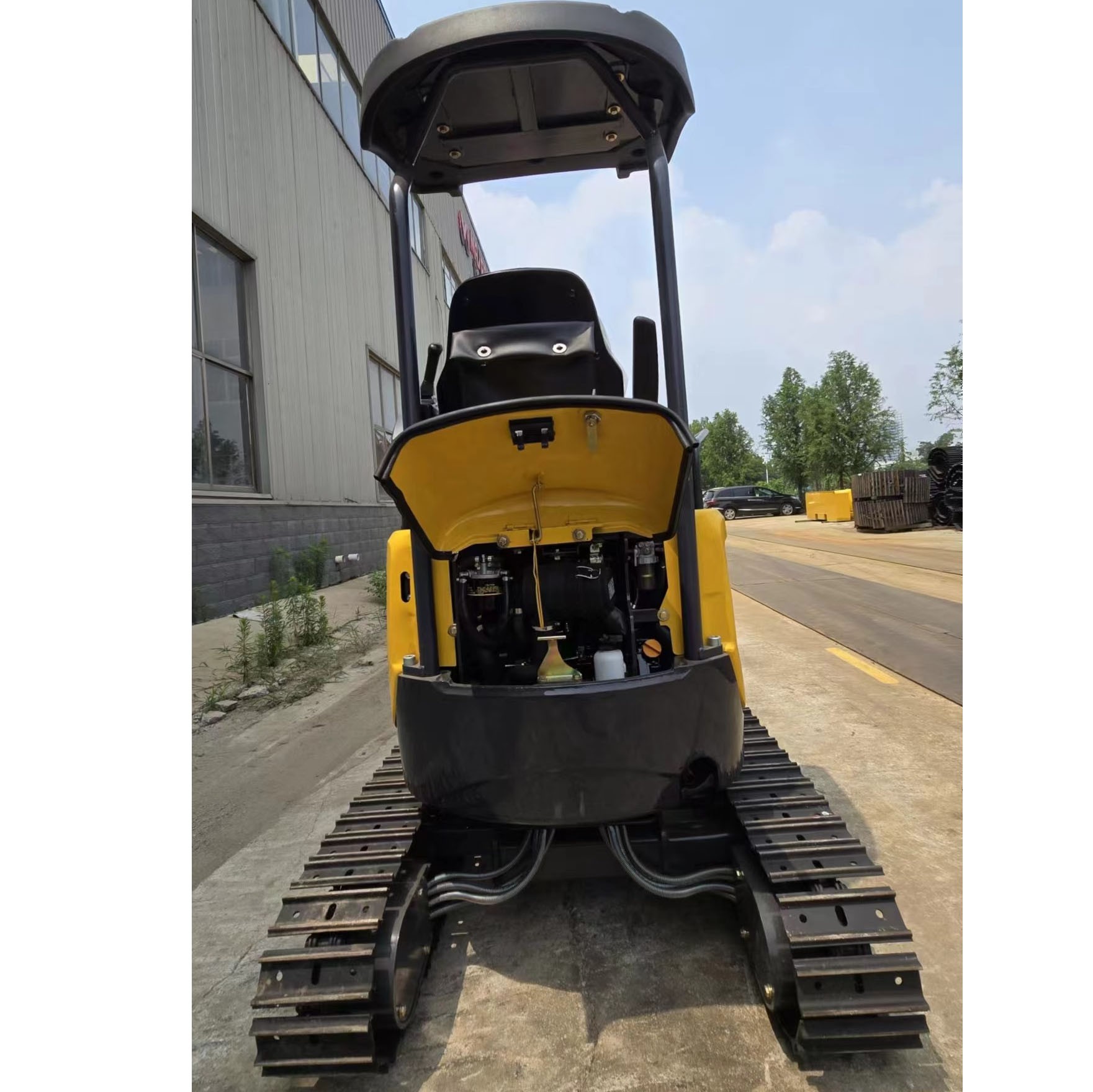

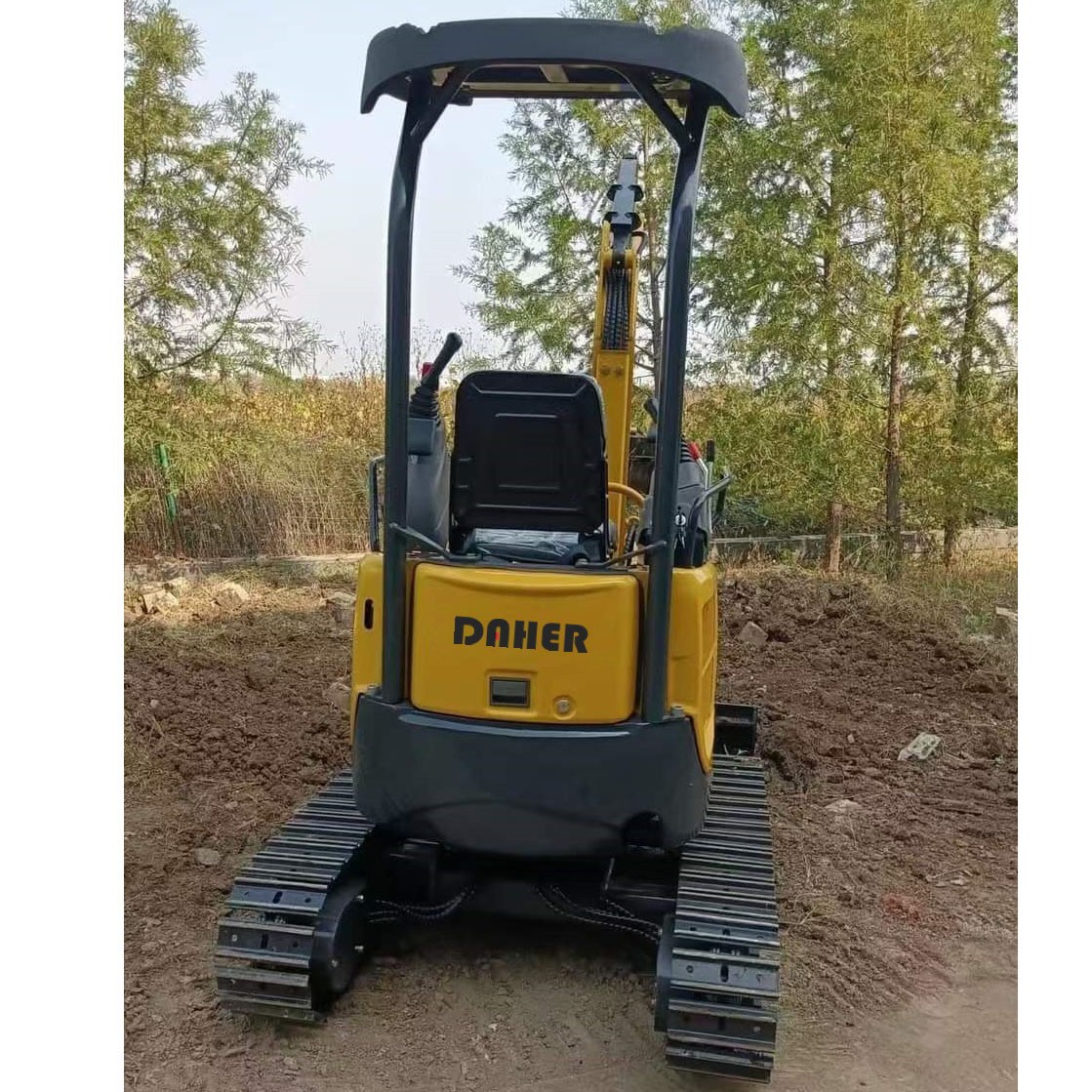

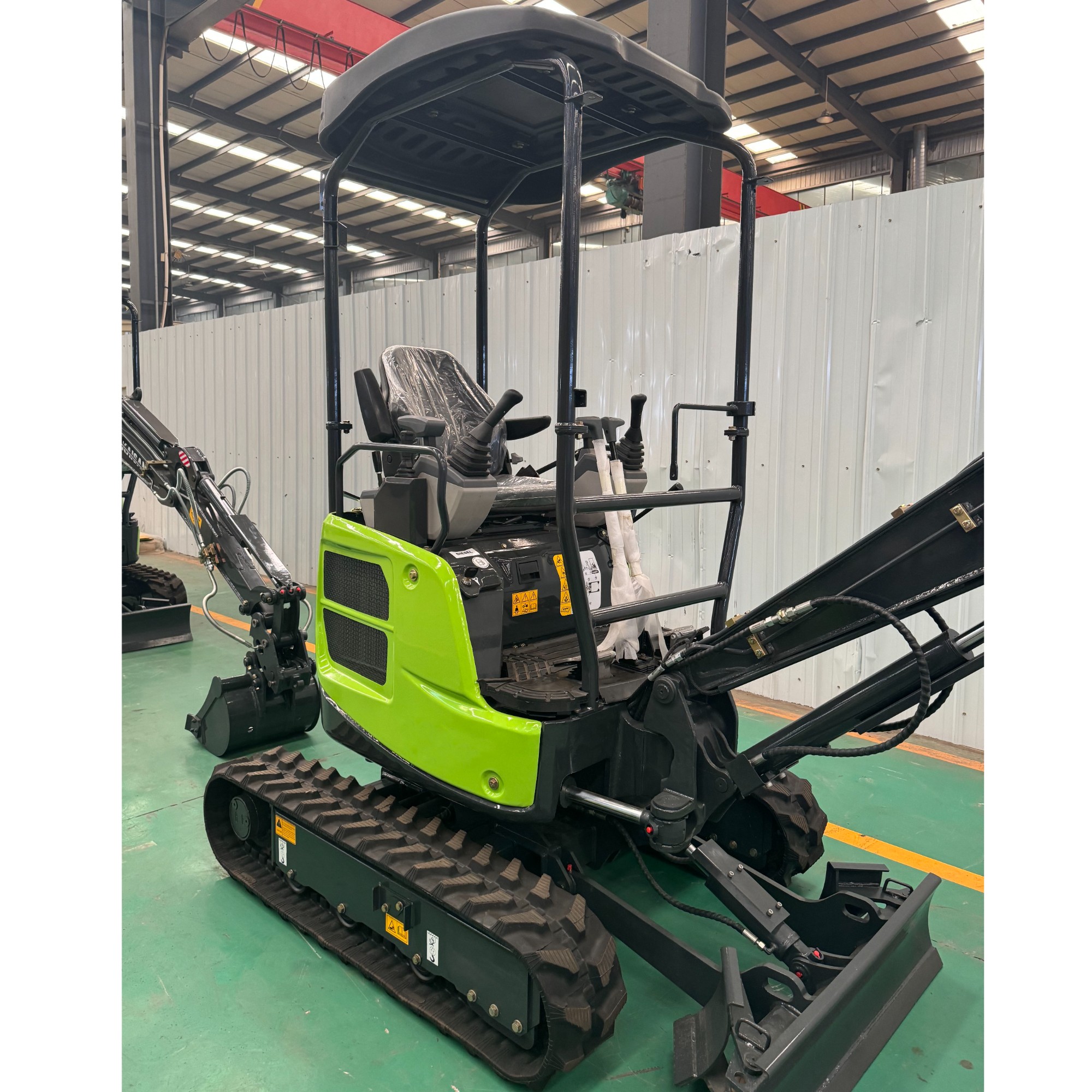

1.7Ton Hydraulic Excavator DH17

1.7Ton Crawler Excavator DH17 with Yanmar Euro 5 :

DH17	Operating weight (kg)	17600
DH17	Bucket capacity (m3)	0.05
Engine	Engine model	YAMMAR 3TNV70
	Rated power (kw/r/min)	10.3/2200
	Volume of fuel tank (L)	20
	Travel speed (km/h)	2.2/4.2
	Swing speed(r/min)	10
Performance	Max climbing degree°	55
	Max.Bucket digging force (KN) ISO	15
	Average grounding pressure(KPA)	30
Hydraulic System	Hydraulic pump	InLine
	Maximum flow （L/min)	61.6
	Setting pressure (MPa)	21
	Volume of hydraulic tank (L)	16
Machine Size	Overall length (mm)	3460
	Overall width (mm)	950/1280
	Overall height （to top of boom）(mm)	1450
	Overall height （to top of cab）(mm)	2370
	Counterweight ground clearance (mm)	460
	Min. ground clearance (mm)	175
	Tail swing radius (mm)	650
	Track grounding length (mm)	1180
	Track length (mm)	1530
	Track gauge(mm)	720/1050
	Track width (mm)	950/1280
	Track shoe width (mm)	230
	Turntable width (mm)	950
Working Range	Max. digging height (mm)	3690
	Max. dumping height (mm)	2630
	Max. digging depth (mm)	2200
	Max. vertical wall digging depth (mm)	-
	Max. digging depth for 2.5m horizontal plane (mm)	-
	Max. digging reach (mm)	3810
	Max.digging reach at ground level (mm)	3710
	Min. swing radius (mm)	1520
	Max. height at min swing radius (mm)	2670
	Distance from swing center to rear (mm)	650
	Height of counterweight (mm)	-
	Grounding length (in transportation) (mm)	2250
	Arm length (mm)	950
	Boom length (mm)	1720
