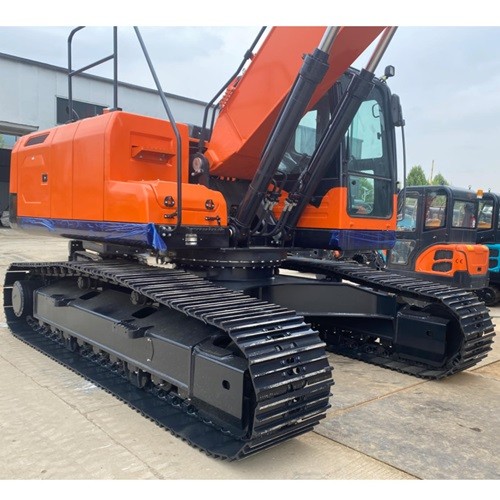

23Ton Crawler Excavator DH230

ENGINE

TRACK SYSTEM

Emission Standard

Tier 3/ Stage III

Maximum Travel speed

5.0km/h

Maker

CUMMINS

Width of track shoe

600mm

Model

QSB7-C166

Number of upper roller per side

2

Power /Rotation speed

124kw(169HP)@2050rpm

Number of bottom roller per side

9

PERFORMANCE PARAMETER

WORKING RANGE

Rock Bucket capacity

1.1m³

Maximum Digging height

9680mm

Operating weight

22500kg

Maximum Dumping height

6770mm

Maximum Grade ability

30°

Maximum Digging depth

6000mm

Maximum Bucket digging force

140KN

Maximum Vertical digging depth

6000mm

Maximum Arm digging force

99KN

Maximum Digging radius

9935mm

Hydraulic system pressure

34.3Mpa

Ground pressure

46kPa

Swing speed

11rpm

Fuel tank

360L

Hydraulic oil tank

212.5L

Boom length

5700mm

Arm length

3800mm

MACHINE SIZE

Overall dimension (L*W*H)

9565mm*2990mm*3000mm

Height of cabin

3000mm

Track length on ground(Axle base)

3700mm

Track gauge

2390mm

Minimum Ground clearance

580mm

Min.slewing radius at front work device

3424mm
